| Connector | Description | |
|---|---|---|
 3W3 |
To connect to a high-quality grayscale computer monitor. | |
Composite video (male / female) |
Also called an "RCA" connector, this connects to an analog video output device (for example, a TV or video recorder) or an analog video source (for example, a video camera or video player). | |

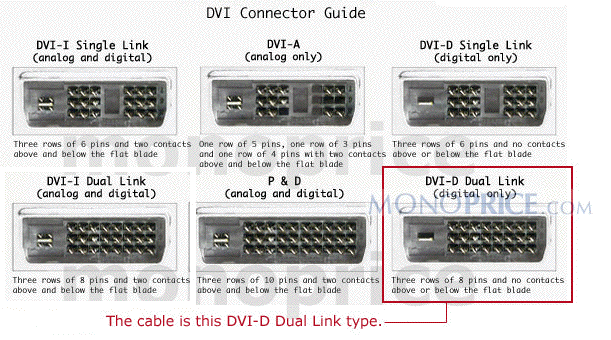

 DVI  DVI Connectors (from Monoprice) Click for a larger image. |
A standard "Digital Visual Interface" connector used to connect to a digital or analog computer monitor. There are digital-only (DVI-D), analog-only (DVI-A), and single-link versions of this connector, but generally a connector type compatible with all variations is used (DVI-I). | |
 HD-15 |
Also sometimes called a "VGA" connector, this connects to analog computer monitors (typically CRT monitors). | |
 KX20 |
A Matrox connector used, in conjunction with an adapter cable, to connect to 4 monitors at a time (digital and/or analog). | |
 LFH-60 |
A Matrox connector used, in conjunction with an adapter cable, to connect to 2 monitors at a time (digital and/or analog). | |
 Mini DIN-3 |
Connects to a stereoscopic device (for example, glasses with LCD shutters) to synchronize that device with the stereo-3D output of the graphics hardware. | |
 S-video (male / female) |
Sometimes referred to as a "mini DIN-4", "separated video", "Y/C", and (incorrectly) "S-VHS" connector, this connects to an analog video output device (for example, a TV or video recorder) or an analog video source (for example, a video camera or video player). This type of connection allows for higher quality than a composite video connection because, with S-video, the brightness and color information are kept separate. | |
 SCART |
Also called "PÈritel" and "Euroconnector", this connects to an analog video output device (for example, a TV or video recorder). This connector type is sometimes used in Europe. |
